Advantages
Key components can be swapped in seconds.
All parts of the computing system are domestically produced.
Lightweight, peak torque 400Nm, torque density +20%, max capacity 100kg.
“BL Nav” system for indoor/outdoor navigation, obstacle avoidance, and exploration.
Cloud-edge-device integration for large-scale robot cluster cooperation (air-ground).

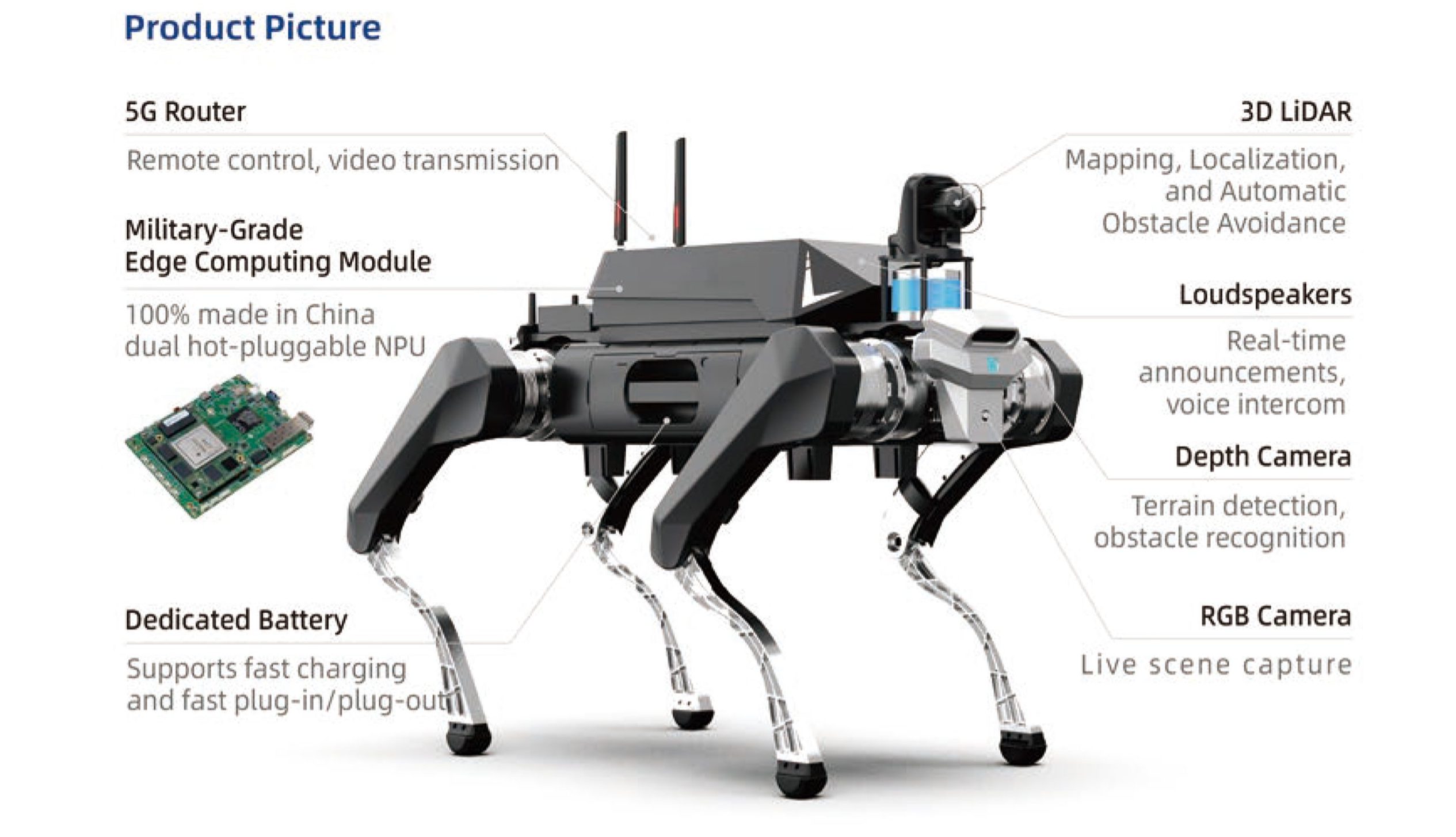

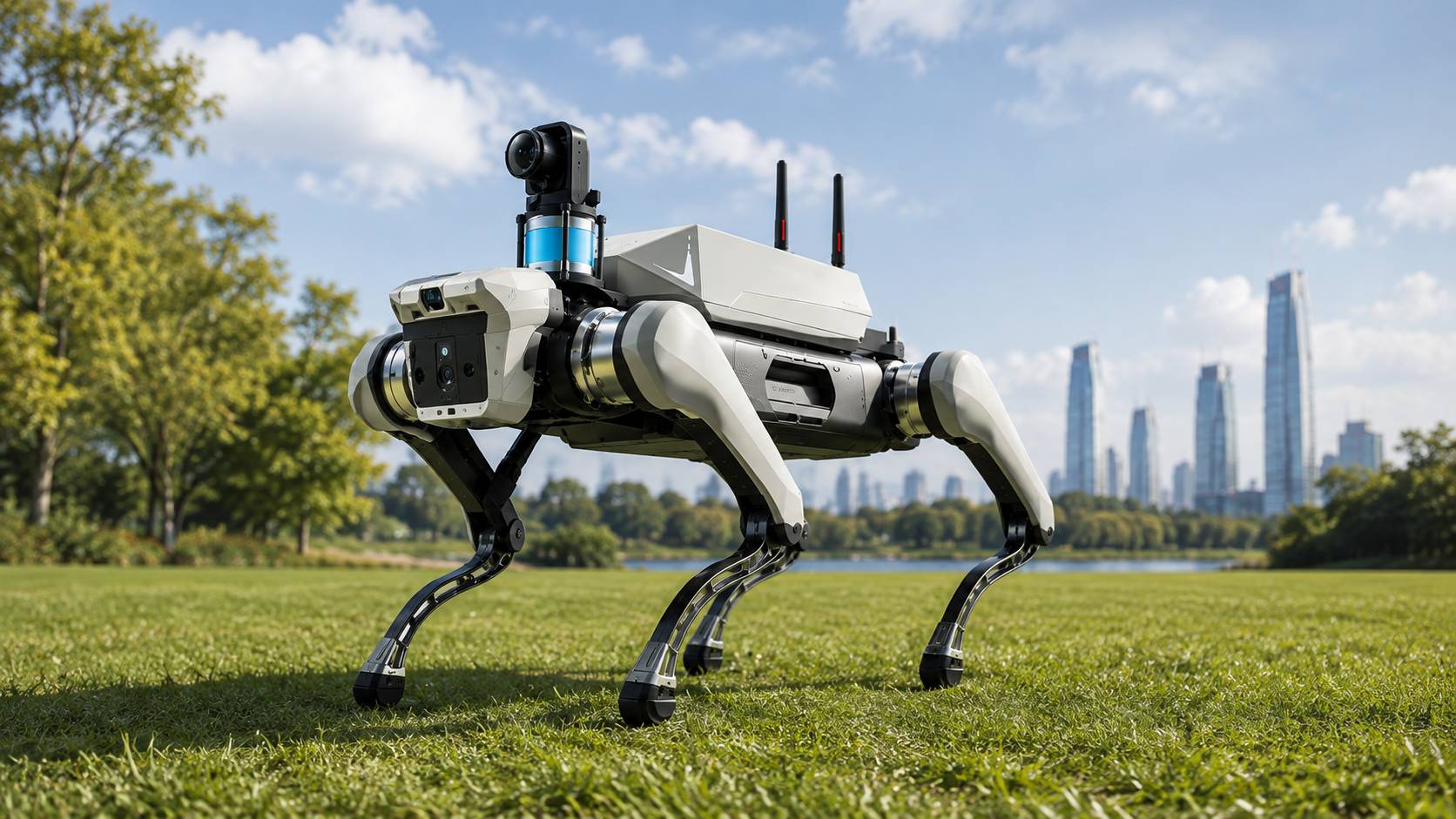

Embodied Intelligent Quadruped Robot
X-25A
Basic Parameters
- Dimensions: 1165×524×660mm (910mm with payload)
- Weight: 64±1kg
Motion
- Walking speed: 1.5 m/s
- Running speed: 3 m/s
- Runtime (empty load): 4h
- Rated load: 50kg
- Max load: 100kg
- Max obstacle height: 30cm
- Max slope angle: 30°
Sensors
- Depth cameras: 2
- RGB cameras: 2
- LiDAR: 1
- 5G router: 1
- Binocular camera: optional
- Speakers: 2
- Microphone array: 6-mic ring (360° audio capture)
Environmental
- Waterproof/Dustproof: IP66
- Operating temperature: -20 ~ 55℃
- Electromagnetic compatibility: GB/T 17626 Series B
Scenarios
Energy
Environmental monitoring, security patrol, equipment inspection, material transport.
Transportation
Tunnel/culvert patrol, track inspection, highway patrol, V2X cooperative driving.
Public Security
Intelligent patrol, campus security, disaster monitoring, emergency rescue.
Industrial Manufacturing
Environmental inspection, product anomaly detection, equipment inspection.
